SANITARY FIXINGS

WC Fixing Sets

Set includes;

• 2 x nylon plug MN
• 2 x screw (hex head)
• 2 x synthetic washer (2 parts)
• 2 x end cap (white or chrome)

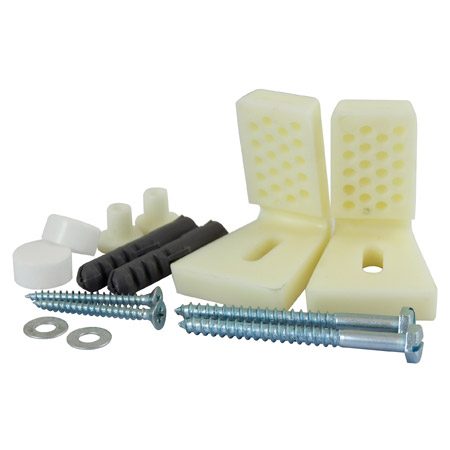

WC & Bidet Fixing Kit

This special fixing set is for use only with pans and bidets with a lateral or side-fixing hole. The nylon bracket is screwed to the floor and the pan or bidet is clamped in position with the screw through the hole in the side. The small nylon bush protects the ceramic part and the special plastic white or chrome cap covers the screw. Drill diameter is 10 mm.

Suitable for: concrete, natural stone, solid bricks, solid plater board and hollow blocks.

Set includes;

• 2 x nylon angled bracket
• 2 x zinc plated hex screw, 7 x 75 mm
• 2 x zinc plated washer
• 2 x 10 mm nylon plug
• 2 x BZP screws, 5 x 50 mm
• 2 x countersunk nylon bush
• 2 x flat cap (white)
• 2 x flat cap (chrome)

WC Fixing Kit

WB9N Kit

• 2 x GFR Nylon Bodies
• 2 x M12 Threaded Sockets
• 2 x Caps (White)
• 1 x Allen Key

Close Couping Cistern Bolts

Set of cistern / pan fixings 130mm x 6mm bolts, nuts & washers

Cistern Close Coupling Bolts for connecting a cistern to a W.C. pan – Normally the cistern will be bolted to the toilet pan through locating holes inside the toilet cistern.

• To suit ceramic/china sanitary ware
• For use with cisterns with bolt holes
• Bolts, washers, nuts and wing nuts included

Washbasin Fixing Sets

Washbasin sets are available with zinc stud screws, metal hexagonal nut and synthetic washer, or with high-grade, synthetic one-piece collar-sleeve nut. The BORGH Mungo nylon plug guarantees a secure fastening in any material.

The M6 and M8 are provided with a collar plug: the collar prevents the plug from being pushed below the surface of the drilled hole. Washbasin and wall become one!

Set includes;

• 2 x nylon plug MN
• 2 x stud/screw
• 2 x synthetic collar sleeve
• 2 x washer
• 2 x BZP nut

Washbasin Fixing Sets (Synthetic Nut / Washer)

Set includes;

• 2 x nylon plug MN
• 2 x stud/screw
• 2 x synthetic collar sleeve/nut

Washbasin Fixing Sets

PRESERVES THE INTEGRITY of the sanitary ware: the nylon nut and collar avoids contact between the metal stud screw and the sanitary ware preventing pressure which could otherwise break or spoil the surface.

EXCELLENT PERFORMANCE of the plug on most base materials.

WIDE RANGE of sizes for different fixings

Set includes;

• 2 x nylon plug MN
• 2 x stud/screw
• 2 x synthetic collar sleeve/nut

Cloakroom Basin Fixing Kits

For fixing cloakroom or corner basins to solid walls.
